Manage Linux Servers with Microsoft OMS

Linux is becoming more and more popular for Microsoft-focused people. Why? First, Microsoft is heavily investing in this area. If you look back some years, the strategy when it comes to non-Microsoft workloads completely changed. Second, many companies want the to use best-of-breed platform for their workloads. For some workloads this might be a Windows platform or application, for others, Linux applications will make the race. This indeed is a challenge for IT organizations because they need to be able to manage different types of workloads on different platforms. In this blog post I will demonstrate two OMS solutions that can assist with Linux-specific workloads.

Quick Overview

What will I cover? Quick overview:

  • Prepare the Linux Box with Docker
  • Onboard the Linux Box to OMS
  • Check collected data
  • Container solution
  • Service Map solution



Step 1 – Prepare the Linux Box with Docker

First off, we need a Linux box. I will go the easy way and provision a new Red Hat Linux on Azure.


Once the box is ready, I will install Docker as well to demonstrate a specific OMS solution.

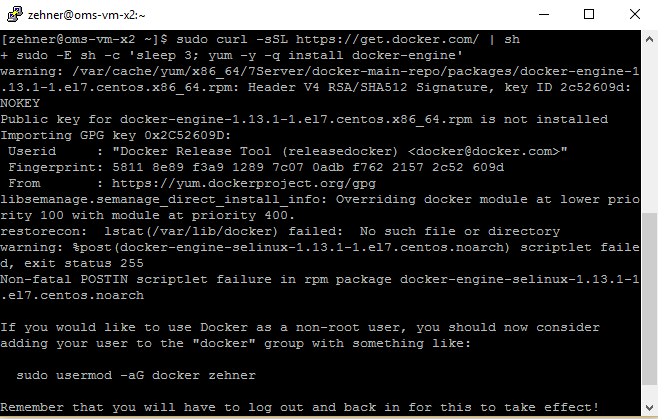

  • Get and install Docker

sudo curl -sSL https://get.docker.com/ | sh


  • Enable and start Docker

sudo systemctl enable docker


sudo systemctl start docker

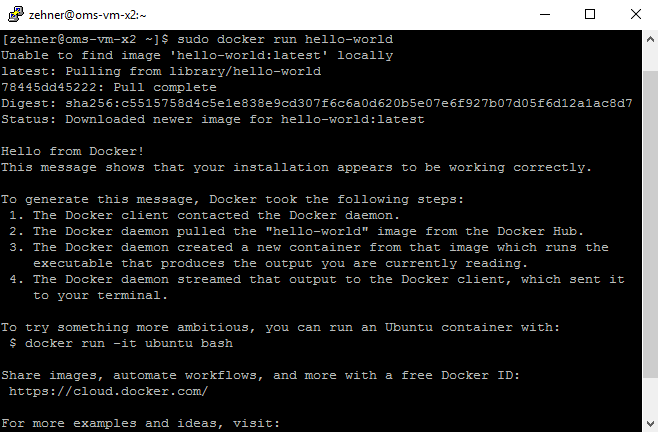

  • Run a Docker test container

sudo docker run hello-world




Step 2 – Onboard the Linux Box to OMS

Before we onboard the box, I want to quickly cover the OMS agent architecture. As you can see there are OMS agents for Windows and Linux operating systems. In addition to the OMS agent, there is a dependency agent that is used for the “Service Map” solution. In this example, I will install both the OMS agent and the dependency agent on the Linux Box.


Now, there are 2 ways to install the OMS agent on the Linux Box: Manually and through the Azure portal.

OMS Agent – Manual Installation

The OMS agent for Linux is available on GitHub. Go take a look > https://github.com/Microsoft/OMS-Agent-for-Linux

From there it can be directly pulled and installed on the Linux Box

  • Download Installer

wget https://raw.githubusercontent.com/Microsoft/OMS-Agent-for-Linux/master/installer/scripts/onboard_agent.sh


  • Install OMS Agent

sudo sh onboard_agent.sh –w ‘OMS Workspace ID’ –s ‘OMS Workspace Key’


OMS Agent – Installation through Azure Portal

If your Linux Box lives in Azure, the onboarding process is even easier. Just navigate to your Log Analytics workspace and onboard the VM with a simple click.



Install the Dependency Agent

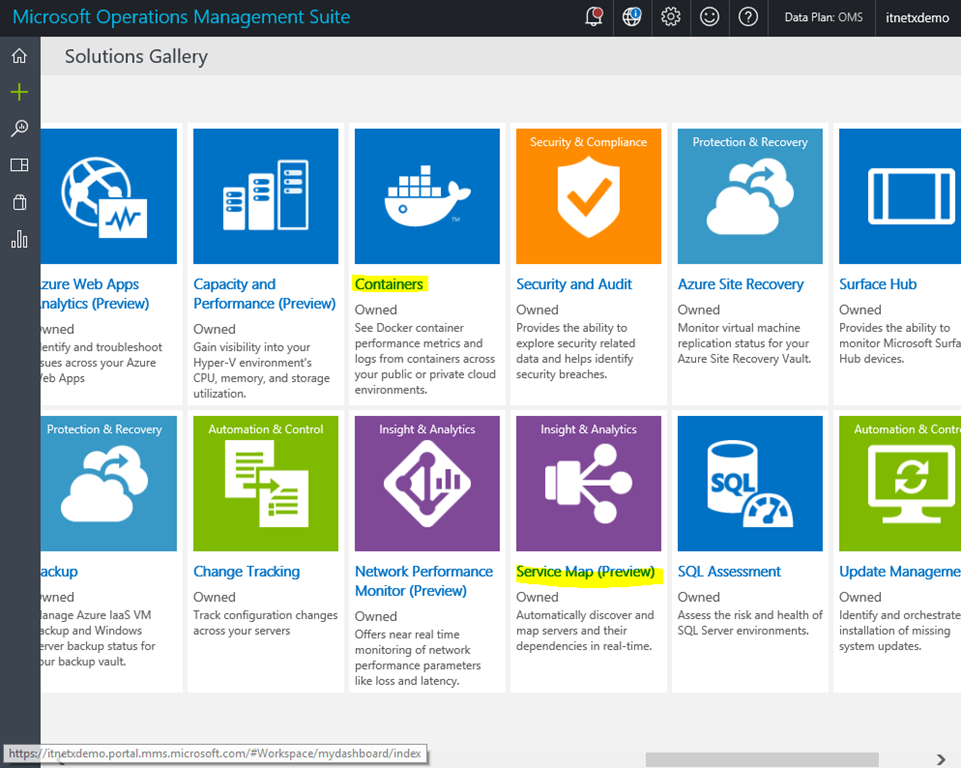

Once the OMS agent is installed, we can continue with the Dependency Agent for the Service Map solution. But first, let’s add the 2 solutions using the the solutions gallery on the OMS website.

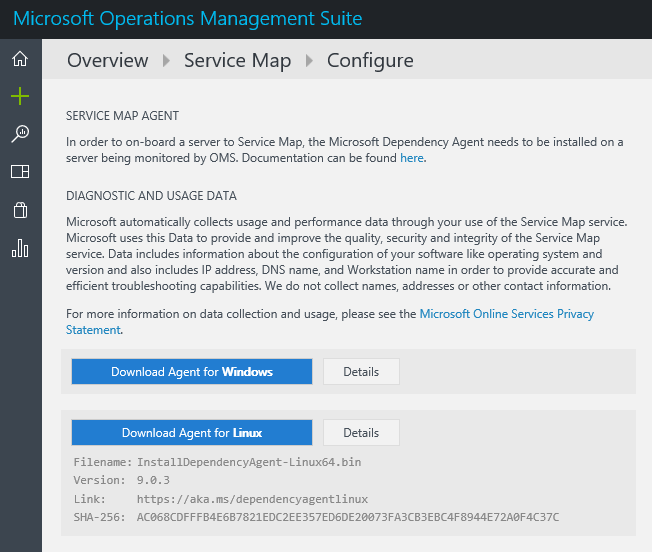

If you navigate to the Service Map solution on the dashboard, you can find the details for the download.

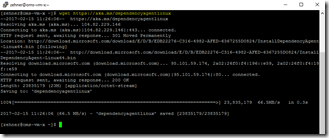

  • Download Dependency Agent for Linux

wget https://aka.ms/dependencyagentlinux


  • Install the Dependency Agent

sudo sh dependencyagentlinux


Check if Linux Box is connected to OMS

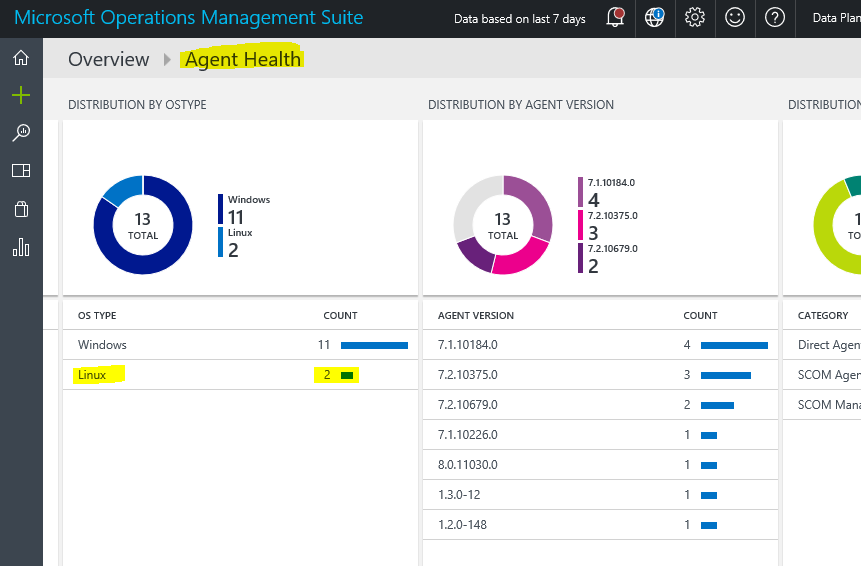

After a while the Linux Box should appear in the OMS Agent Health solution


Configure data collection

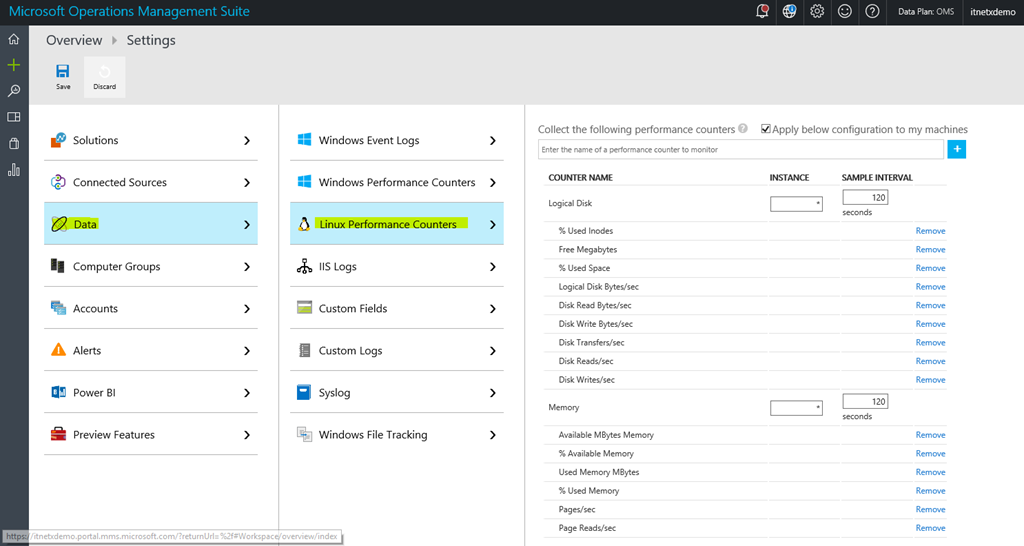

If needed, specific data collection can be configured in the OMS configuration for Linux Agents.

  • Linux Performance Counters


  • Syslog Data


Wait for an hour or so until your OMS workspace has some collected data from the Linux Boxes available.



Step 3 – Check collected Data

Now let’s check the Log Search for Linux-specific data.

  • Type=Syslog


  • Type=Perf Computer=LinuxBox


It seems data from the Linux Box is making it to the OMS workspace. Nice. Now let’s check out some solutions.



Step 4 – Container Solution

This solutions gives you insights about the container hosts and containers that are running on the host. To make sure you will see something start some containers. I will use some simple containers (hello-world, ubuntu) and a specific container that runs Apache Tomcat. I will only go into the Tomcat container example.

  • Start Tomcat container on Linux Box

sudo docker run –it –rm –p 8888:8080 tomcat:8.0

This will run a container that executes Tomcat within the container on port 8080 and makes it accessible on the container host (Linux Box) on port 8888.


Once the container runs, try to connect to the Tomcat website from another machine.

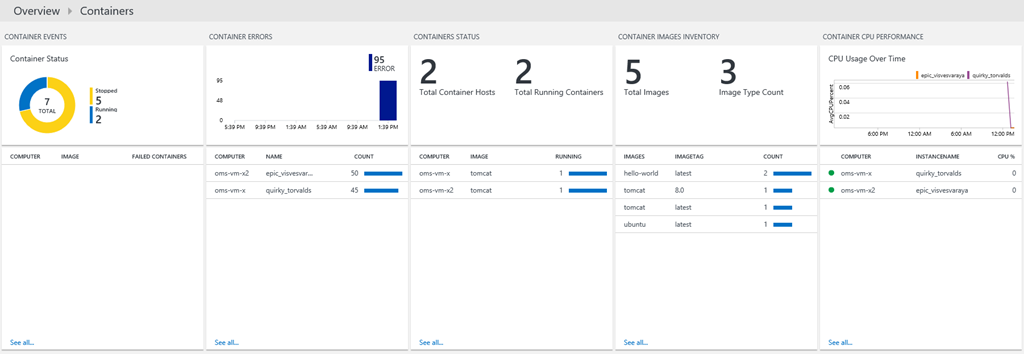

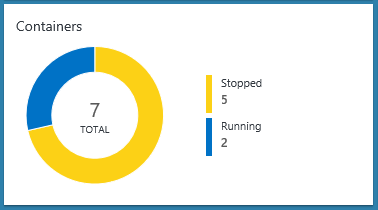

Now wait some time and check out the container solution and the collected data. This gives you some nice insights.





Step 5 – Service Map Solution

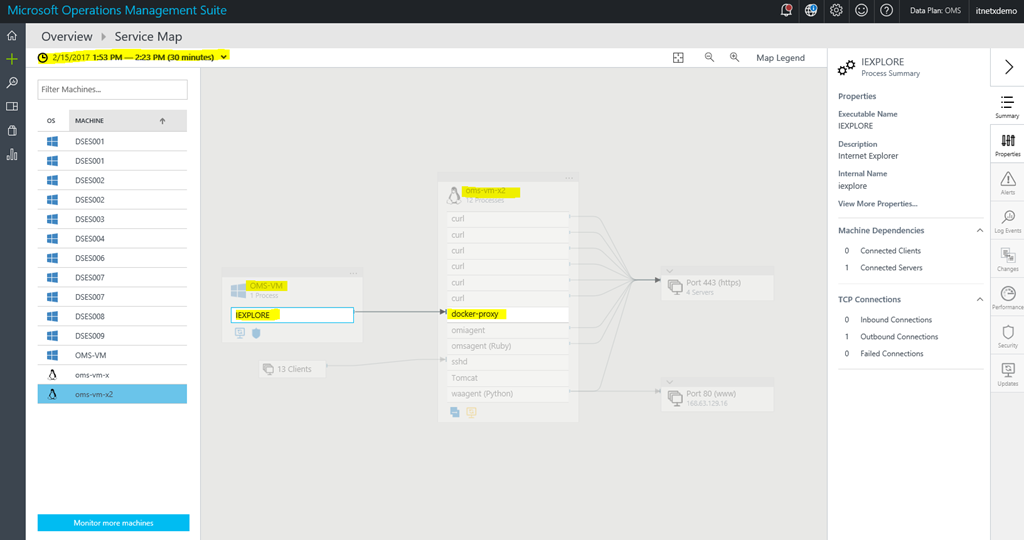

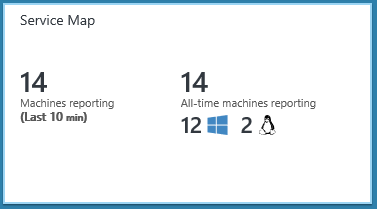

Now navigate to the Service Map solution. This solution gives you important insights about communication patterns within your infrastructure.


Change the focus to the Linux Box and select an appropriate time frame. Beside many incoming and outgoing connections you should see the connection that was made to the Tomcat server that runs inside the Docker container.




Conclusion

With this blog post I tried to demonstrate some OMS-specific possibilities to manage Linux workloads. It’s only a subset of what’s possible today, but should give you some kick start to discover what’s possible by yourself. And remember, Microsoft will invest heavily in this area in the future – be prepared!

Cheers
Marcel
