Increase the number of max. Incident Attachments to more than 10

In Service Manager you have the option to attach files to work items. The max. number of attachments can be set using the general/global Incident settings in the SCSM console. The problem here is that the input validation does not allow you to set a value higher than 10. However, when you need more than 10 attachments per incident, this can still be configured using a simple script.

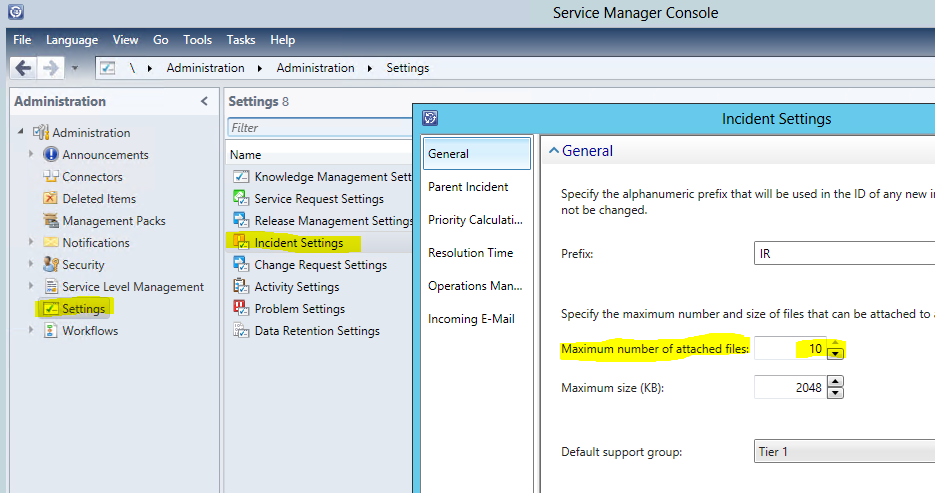

This requirement came from a customer requirement – he needed to have more than 10 attachments per incident. Before talking about how to configure that, let’s first take a look at the general incident settings.


A max. of 10 attachments can be configured here. If you need more, you can do so by using the following script that is based on the smlets PowerShell module.

$MaxNumber = 50

Import-Module smlets

$class = Get-SCSMClass System.WorkItem.Incident.GeneralSetting$

$inc = Get-SCSMObject -Class $class

Set-SCSMObject -SMObject $inc -Property MaxAttachments -Value $MaxNumber

Write-Host “Incidents can now have a max. of $MaxNumber attachments” –foregroundcolor yellow

This example script changes the max. value of attachments per incident to 50 and after a console restart you can attach more files. But if you afterwards check the general incident settings you will still see a max. of 10 attachments and that may be a bit confusing. The problem here is that when you hit OK here (maybe after changing another general incident value), the max. value for attachments will be set back to 10. If existing incidents already have more than 10 attachments, this change will have no impact on those. But it means that you have to rerun the script to change the value back to a higher value. If you want to automate this you can use Orchestrator or a custom SCSM workflow to automatically execute this script on a regular basis.

If you want to check the effective value that is set you can use this script.

Import-Module smlets

$class = Get-SCSMClass System.WorkItem.Incident.GeneralSetting$

$inc = Get-SCSMObject -Class $class

Write-Host “The max. number of attachments per incident is” $inc.maxattachments -foregroundcolor yellow

Cheers
Marcel

This entry was posted in SCSM and tagged , , , , , . Bookmark the permalink.

3 Responses to Increase the number of max. Incident Attachments to more than 10

  1. Vern Scoggins says:

    It’s unfortunate that this value doesn’t persist in the database. My DBA created a trigger to set the value back automatically rather than requiring the PowerShell script to be run everytime a change is made to Incident Settings. We have been running this in our test environment without any issues. Wondering if anyone else has used this approach?

    In dbo.MT_System$WorkItem$Incident$GeneralSetting create a new trigger

    USE [ServiceManager]
    GO
    /****** Object:  Trigger [dbo].[TR_MT_System$WorkItem$Incident$GeneralSetting]    Script Date: 07/08/2013 10:29:38 ******/
    SET ANSI_NULLS ON
    GO
    SET QUOTED_IDENTIFIER ON
    GO
    ALTER TRIGGER [dbo].[TR_MT_System$WorkItem$Incident$GeneralSetting]
    ON [dbo].[MT_System$WorkItem$Incident$GeneralSetting]
    AFTER UPDATE
    AS
    IF ( UPDATE (MaxAttachments_C4DA8670_A969_3B66_EF2D_C791CC6BA442) )
    –BEGIN
    –RAISERROR (60018, 16, 10)
    –END;
    –GO
    UPDATE dbo.MT_System$WorkItem$Incident$GeneralSetting
    SET MaxAttachments_C4DA8670_A969_3B66_EF2D_C791CC6BA442 = ’20’
    WHERE MaxAttachments_C4DA8670_A969_3B66_EF2D_C791CC6BA442 BETWEEN 1 and 10 ;

  2. Pingback: Increase the number of max. Incident Attachments to more than 10 - SysManBlog
